Smyth Trailers

We are pleased to offer a range of Smyth Trailers. As one of the industry leaders, Smyth Trailers are known for their reliability, robust construction and longevity. At Michael Burdge we can arrange for a Smyth Trailer to be made to order to meet our customer’s exact specifications. There is an extensive range of trailers to choose from and we can offer our expertise so that you choose the trailer that works best for you.

Smyth Trailers are well known for their build quality and are available in a number of different sizes and capacities with a range of engineering features including a unique 8 tonne, 50mm leaf spring system giving the best ride and stability in the market today.  All have 5mm one piece floor and 3mm sides with the exception of dump trailers which are fitted with 10mm floor and 6mm sides.  All Smyth Trailers are fully shot blasted before being sprayed with 2 pack paint which is then baked on.  The trailers come in a variety of specifications with a huge choice of colours.  Different body heights and sizes are available upon request.

The range offers silage trailers, super cube trailers, tri axle trailers, grain trailers, dump trailers, rootcrop/beet heaper trailers and bale trailers in a variety of dimensions and configurations.

Key Facts:

  • Cost effective, long-lasting and robust trailers.
  • Unique 8 tonne spring system for superior stability
  • Fully shot blasted before being sprayed with 2 pack paint baked on.
  • All trailers, with the exception of 12 tonne, come with chrome tipping rams as standard.
  • All have 5mm one piece floor and 3mm sides with the exception of the dump trailer which has a 10mm floor and 6mm sides.

Models of trailer

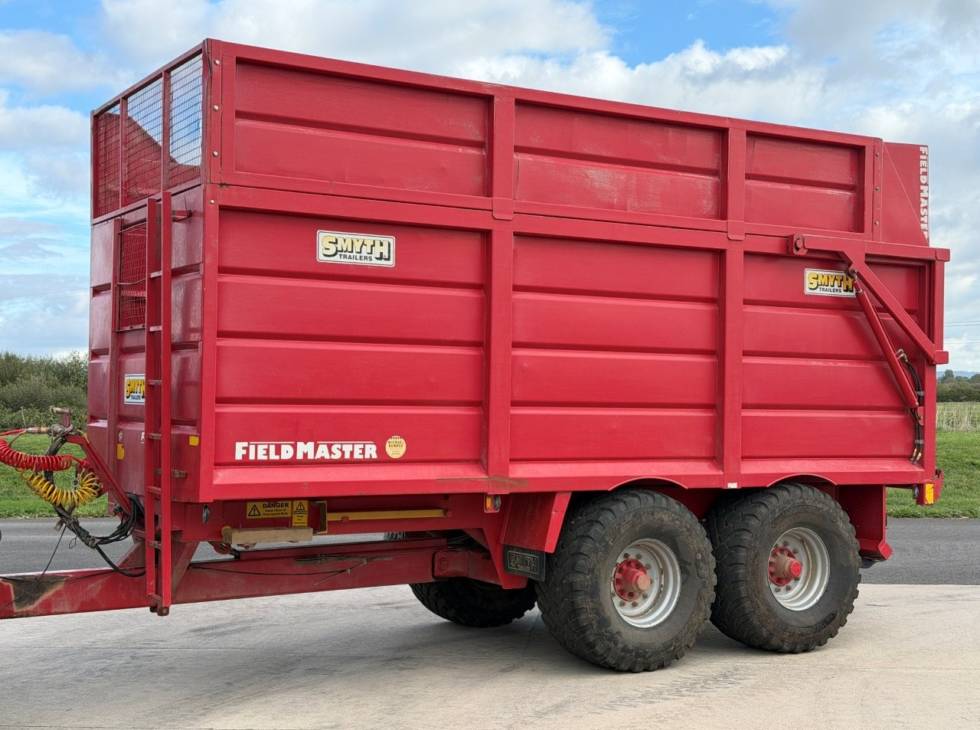

Smyth Field Master Contractor Silage Trailers Ref: N/A

All Field Master trailers are fitted as standard with 10 stud commercial axles 420-180 brakes, sprung drawbar, full RTA LED lighting, chrome tipping rams and many other features.

Field Master Contractor Silage Trailers are available in the following sizes:-

  • 16 tonne Field Master;
  • 18 tonne Field Master;
  • and 20 tonne Field Master.

Different body heights available on all trailers upon request.

MORE INFO

Smyth Field Master Tri Axle Trailers Ref: N/A

Field Master Tri Axle Trailers come as standard with a passive rear steering axle.  The rear steering axle can be locked from the tractor cab for reversing. Our customers report that the rear steering axle feature enables the Tri Axle trailers to be as manouverable as the 20′ tandem axle trailers.

Field Master Tri Axle trailers are available in the following sizes:-

  • Field Master 24′ Tri Axle;
  • and Field Master 26′ Tri Axle.
MORE INFO

Smyth Field Master Super Cube Trailers Ref: N/A

Field Master Super Cube Trailers are designed for increased capacity with higher sides and with a unique sloping front.  The 20’6″ Field Master Super Cube has more capacity than a 22′ standard Field Master.

Field Master Super Cube Trailers are available in the following sizes:-

  • 18′ Field Master Super Cube;
  • 20’6″ Field Master Super Cube;
  • and 22′ Field Master Super Cube.
MORE INFO

Smyth Farmer/Contractor Trailers Ref: N/A

Farmer/Contractor trailers have a smaller 8″ chassis fitted with agricultural axles as standard.  They can be upgraded to full commercial axles, large tyres and air brakes if required.

Farmer Contractor trailers are available in the following sizes:-

  • 12 tonne Farmer Contractor;
  • and 14 tonne Farmer Contractor.
MORE INFO

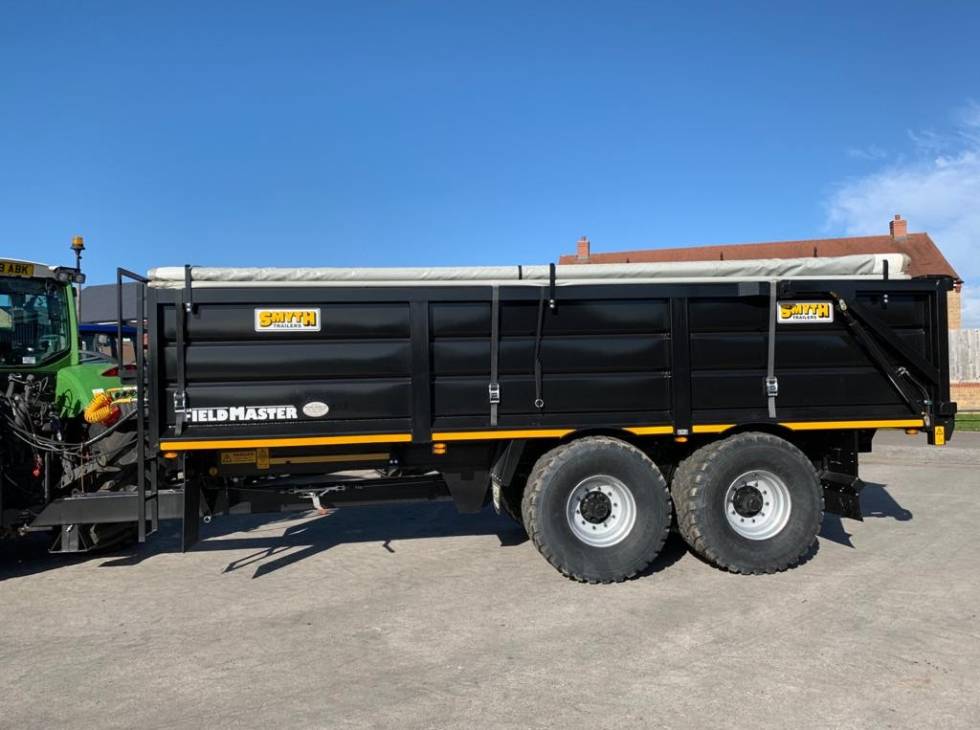

Smyth Field Master Grain Trailers Ref: N/A

Field Master Grain Trailers come fitted with a full width perspex front window. Rollover sheets with front platform and ladder are also available as an option.

Field Master Grain trailers are available in the following sizes:-

  • 16 tonne Field Master Grain;
  • 18 tonne Field Master Grain;
  • and 20 tonne Field Master Grain.

MORE INFO

Smyth Field Master Root Crop/Beet Heaper Trailers Ref: N/A

Field Master rootcrop/beet heaper trailers are available with full width arched front window and optional rollover sheet and front platform with ladder.

Standard dimensions and sizes:-

  • 14 tonne Field Master Rootcrop/Beet Heaper;
  • 16 tonne Field Master Rootcrop/Beet Heaper;
  • 18 tonne Field Master Rootcrop/Beet Heaper.

MORE INFO

Smyth Bale Trailers Ref: N/A

Bale trailers can be built to any length, 22′-32′ or more with specification to customers requirements.  Bale trailers are available in the following sizes:-

  • 12 tonne Bale;
  • and 14 tonne Bale.

Other sizes available on Bale trailers upon request.

MORE INFO

Smyth Dump Trailers Ref: N/A

Dump trailers are available in the following sizes:-

  • 12 Tonne Dump;
  • 14 Tonne Dump;
  • 16 Tonne Dump;
  • 18 Tonne Dump;
  • and 20 Tonne Dump.



MORE INFO
